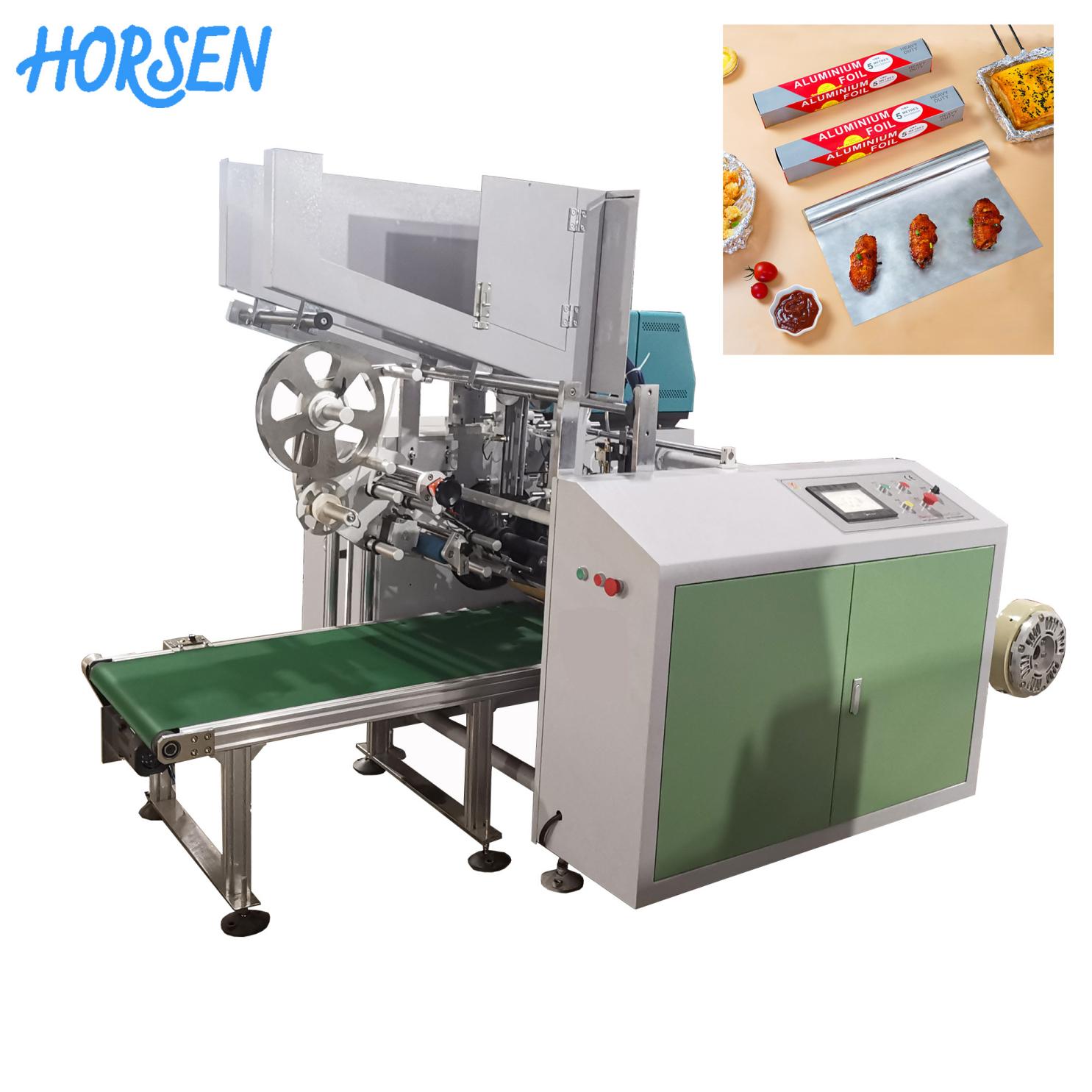

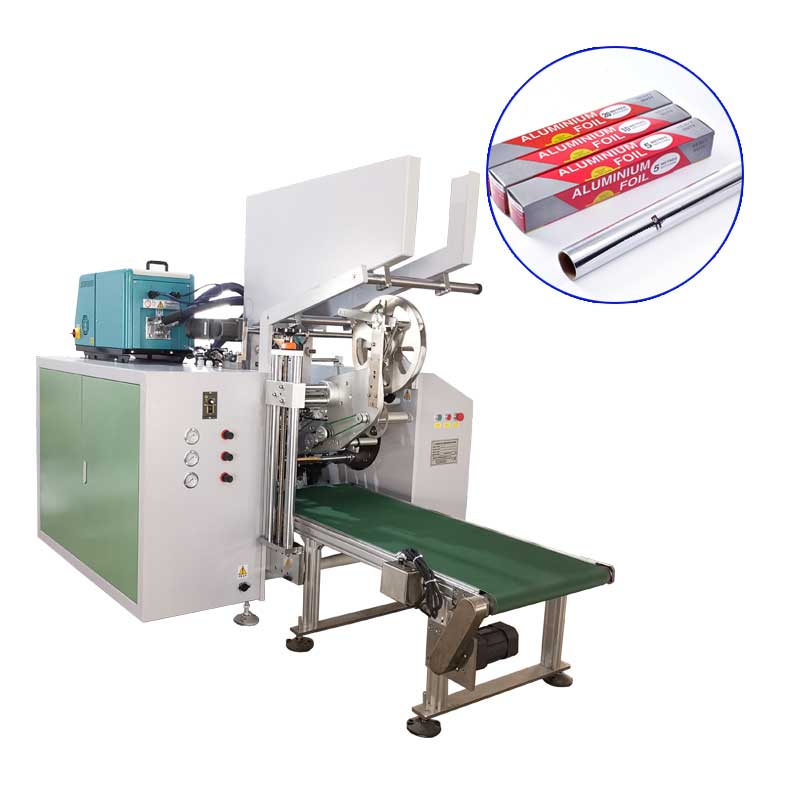

HSS-450 Automatic 6 Shafts Aluminum Foil Rewinding Machine

HSS-450 Automatic 6 Shafts Aluminum Foil Rewinding Machine Details

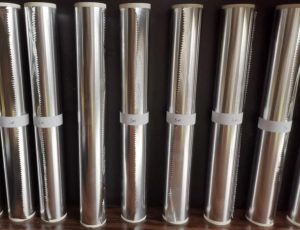

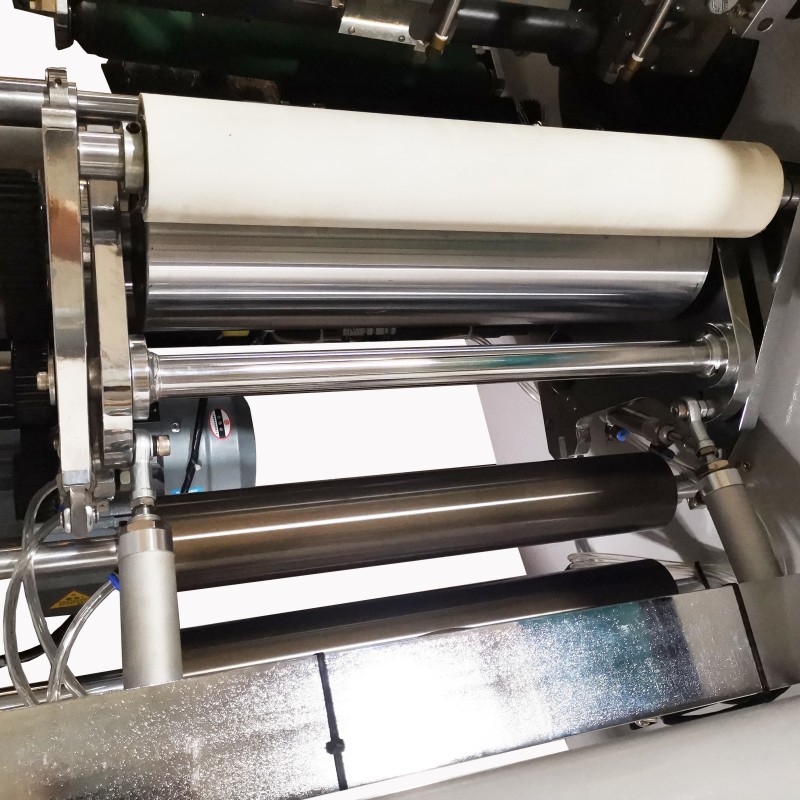

Automatic aluminum foil rewinding machine is use for rewinding the jumbo roll of aluminium foil / baking paper into small roll. It adopts surface and center rewinding method, it can rewind the roll from 1 meter for house foil roll, kitchen foil roll, and catering foil roll etc. It could feeding paper cores, rewinding by meters, sealing(sealing by hot melt glue system) the finishes rolls and transferring automatically with 6 shafts revolver type system automatic changes without stop.It is controlled by a PLC microcomputer, with high-precision and accurate encoder, reliable electronic and pneumatic combine, the speed could rewind from 25 rolls to 40 rolls per minute.

Item number	HSS-450 6shafts auto change
Rewinding Material	Aluminum foil, baking paper, silicon paper
Driven Type	Electric
Width of material	260-450mm(customized)
Width of products	260-450MM(customized)
Aluminum Foil Thickness	0.008-0.04mm
Diameter of un-winder roll(Max)	Ф700mm (350kgs)
Diameter of re-winder roll(Max)	Ф90mm / max. length 300m (2.5-3kgs)
Minimum length of rewind	1meter
Core size of un-winder	3’’ or 6”
Core size of re-winder	30mm 35mm or 38mm (Customized)

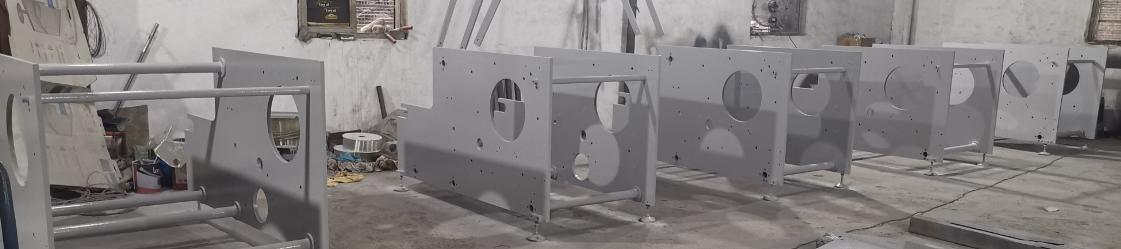

Structure thickness	20mm
Max Mechanical Speed	350m/min
Working Power	7.5KW
Main motor	4kw
Voltage	3P. 380V(customized) 20A
Frequency	50HZ
Air pressure	0.5Mpa
Change motor and gear reducer	750W
Rewind motor	1.5kw Servo Motor
Hot-melt Glue power	3KW
Sticker motor	750W (short & long)
Inverter	Delta Taiwan
PLC	Siemens Germany
Driver	Delta Taiwan
Servo motor	Delta Taiwan
Touch screen	7” WEINVIEW
Hot-melt glue machine	XBS China
Air Switch	Schneider France
Bearing	NSK
Unwind and rewind tension	Automatic tension
Auto count meter	By encoder
Material finish function	Automatic machine stop
Weight	1600kg
Installing dimension (LXWXH)	350018002100mm
Packing Type	wooden case
Packing Size	245176182cm
Convey table size	135*64cm

Machine Advantage

Perfect painting for machine outlook with heavy duty structure.

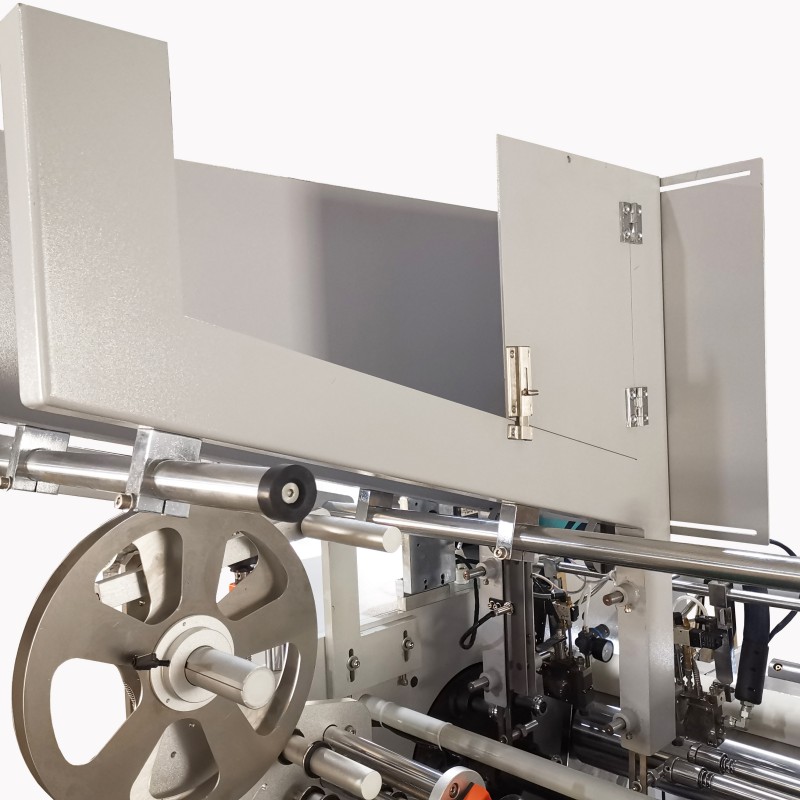

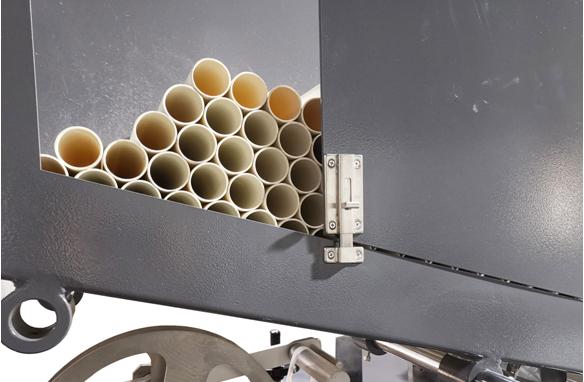

Nice tube feeder design with flexible door

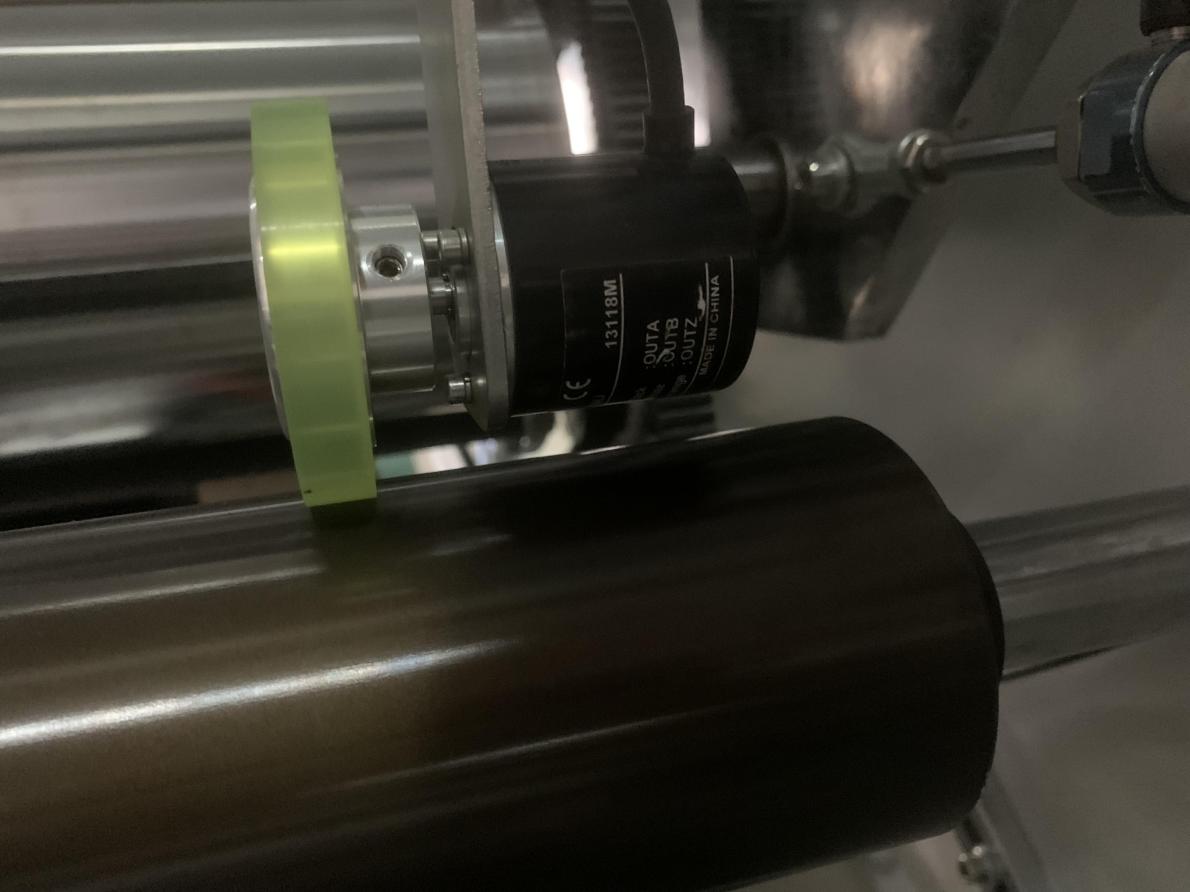

High Accuracy encoder to make sure the rewinding regularity
Auto labeling System with changeable length setting(SHORT & LONG LABEL)

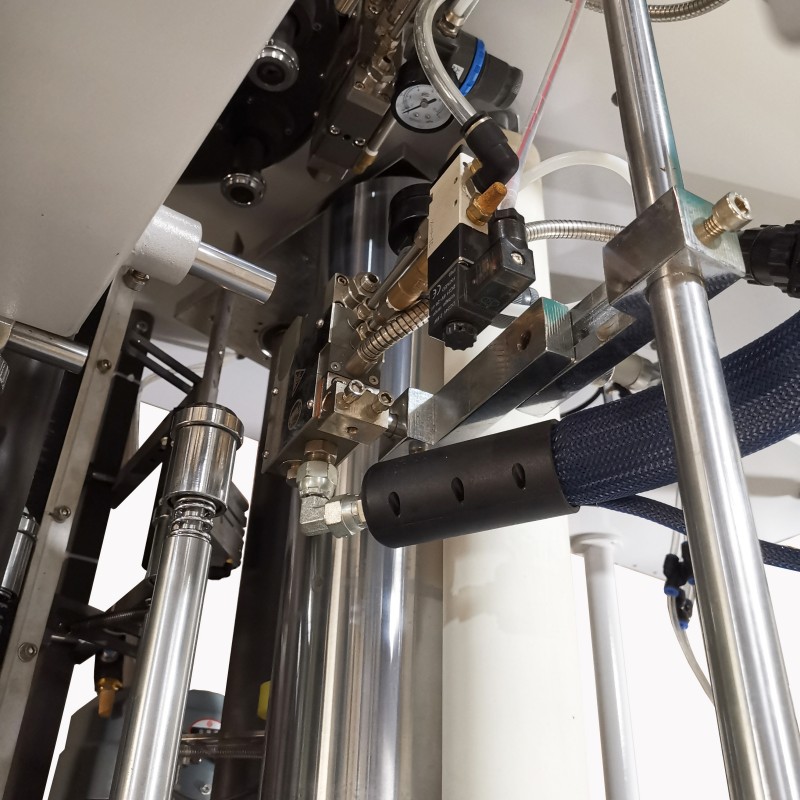

Hot-melt glue system easy to handle

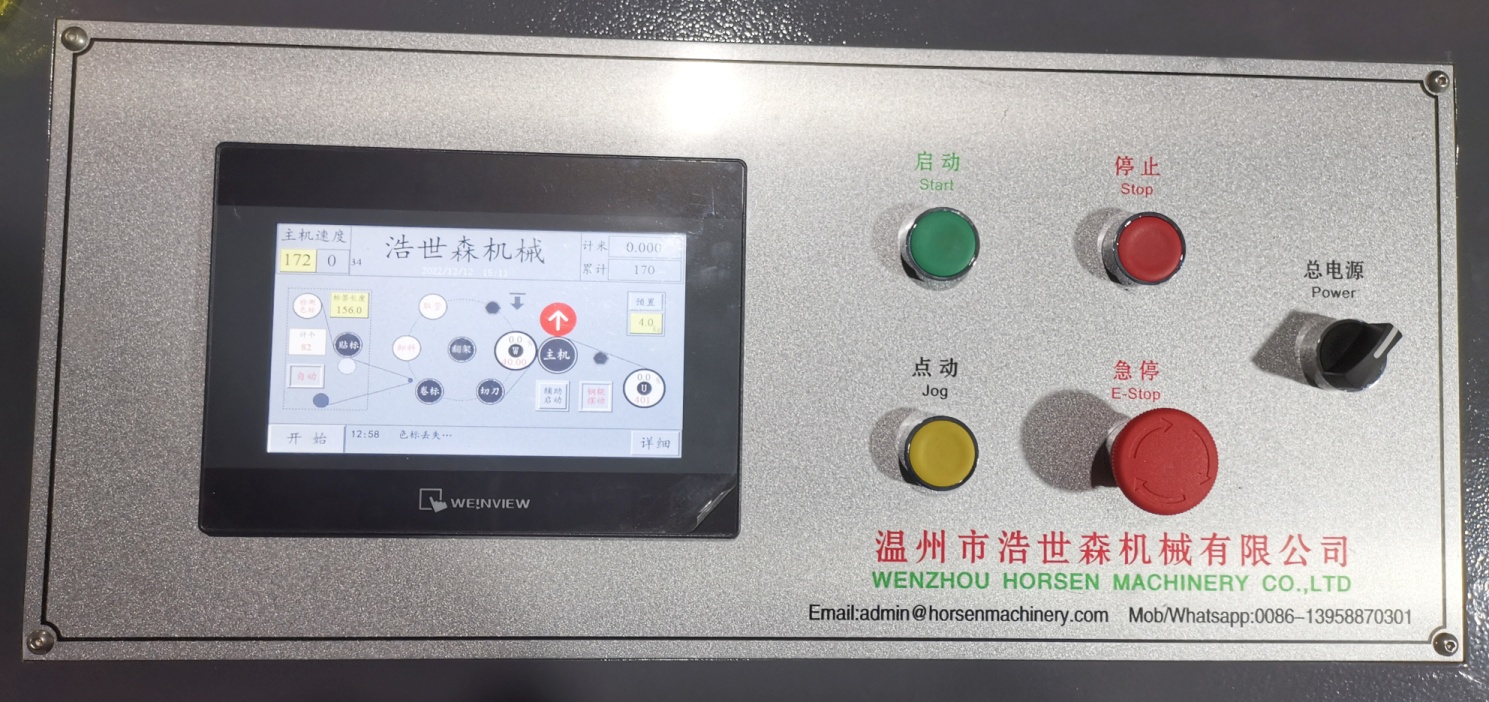

Basic two languagesdisplay touch screen with easy setting rewinding length
Delta inverter.
Tube feeder box use motor instead of cylinder

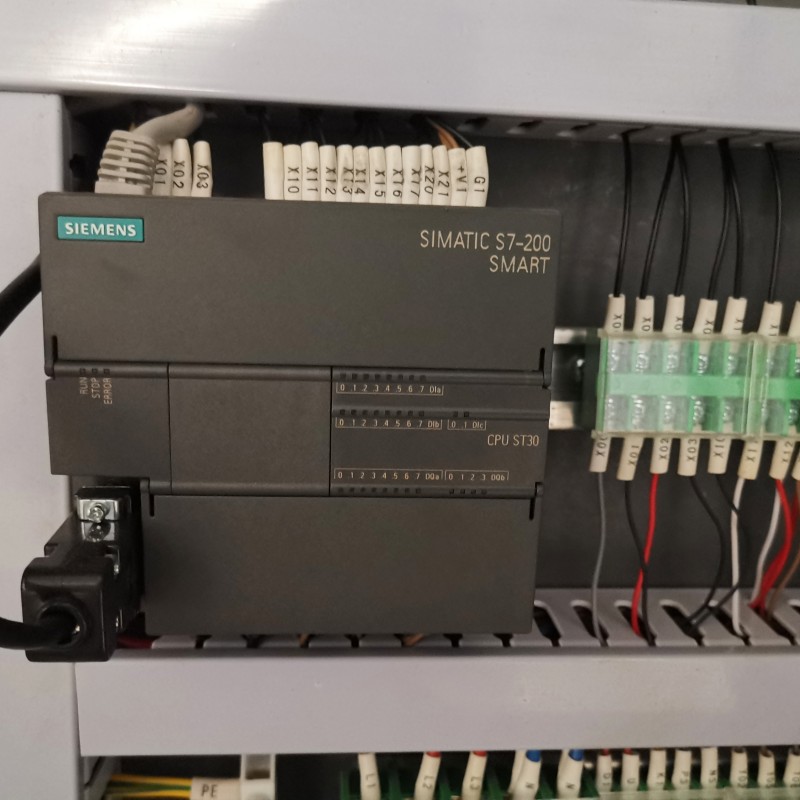

SIEMENS PLC
Tension control

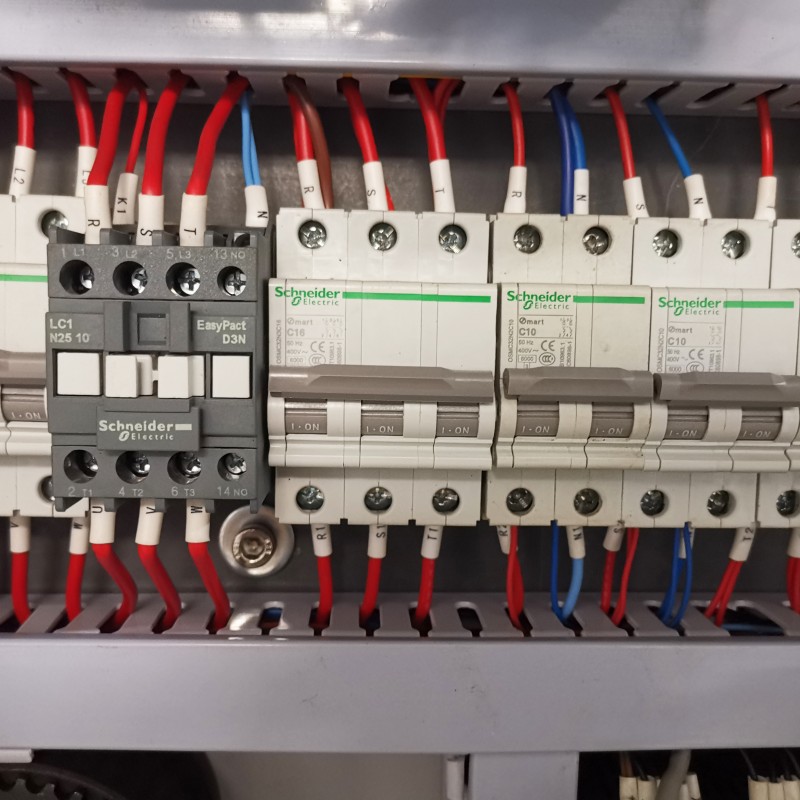

France Schneider Switch
