High Speed Rewinding Machine for Household Aluminum Rolls

Brand	Horsen
Product Origin	China
After-sales service	Video Support, Spare Parts Available, Whole-life Technical Support
Package	Standard Export Wooden Case
Machine Type	High Speed Rewinding Machine
Work Method	Flat Knife Cutting
Structure	Winding Machine
Warranty	1 Year

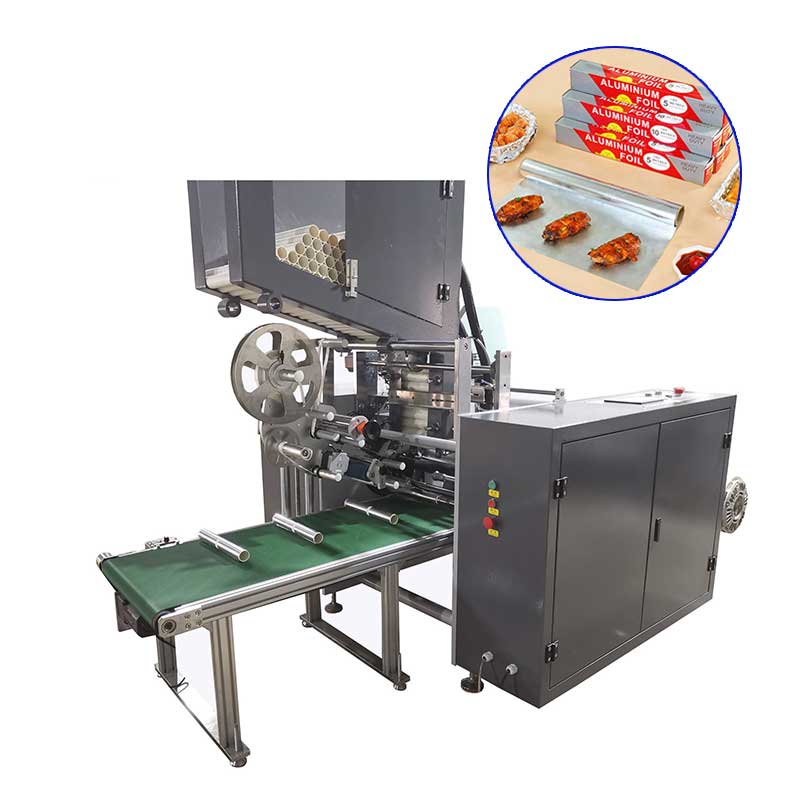

The automatic rewinding machine HSS-450 converts aluminum foil and baking paper rolls for household use.

It is the ideal solution for manufacturers who need flexibility and efficiency at low operating costs.

The HSS-450 is particularly suitable for medium to large manufacturers that produce a wide range of products.

Specification

Item number	HSS-450 6shafts auto change
Rewinding Material	Aluminum foil, baking paper, silicon paper
Driven Type	Electric
Width of material	200-450mm(customized)
Width of products	200-450MM(customized)
Diameter of un-winder roll(Max)	Ф700mm
Diameter of re-winder roll(Max)	Ф90mm / max. length 300m
Minimum length of rewind	1meter
Core size of un-winder	3’’ or 6”
Core size of re-winder	30mm 35mm or 38mm （Customized )
Max Mechanical Speed	350m/min
Main motor	4kw
Air pressure	0.5Mpa
Change motor and gear reducer	750W
Rewind motor	1.5kw
Hot-melt Glue power	3KW
Sticker motor	Servo motor 750W
Inverter	Delta Taiwan
PLC	Siemens
Touch screen	WEINVIEW
Hot-melt glue machine	China famous brand（if need Swiss import available)
Unwind and rewind tension	Automatic tension
Auto count meter	By encoder
Material finish function	Automatic machine stop
Weight	1600kg
Installing dimension (LXWXH)	350018002100mm
Packing Type	wooden case
Packing Size	230175190cm
