Beauty Salon Hairdressing Foil Rewinding Machine

Beauty Salon Hairdressing Foil Rewinder

Brand	Horsen
Product Origin	China
After-sales service	Video Support, Spare Parts Available, Whole-life Technical Support
Package	Standard Export Wooden Case
Machine Type	High Speed Rewinding Machine
Work Method	Flat Knife Cutting
Structure	Winding Machine
Warranty	1 Year

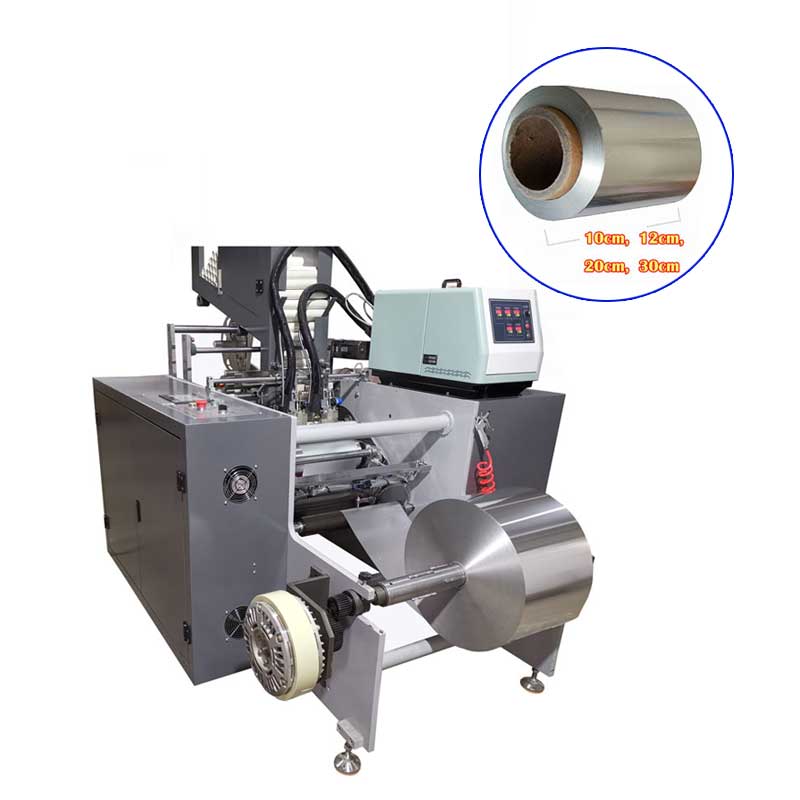

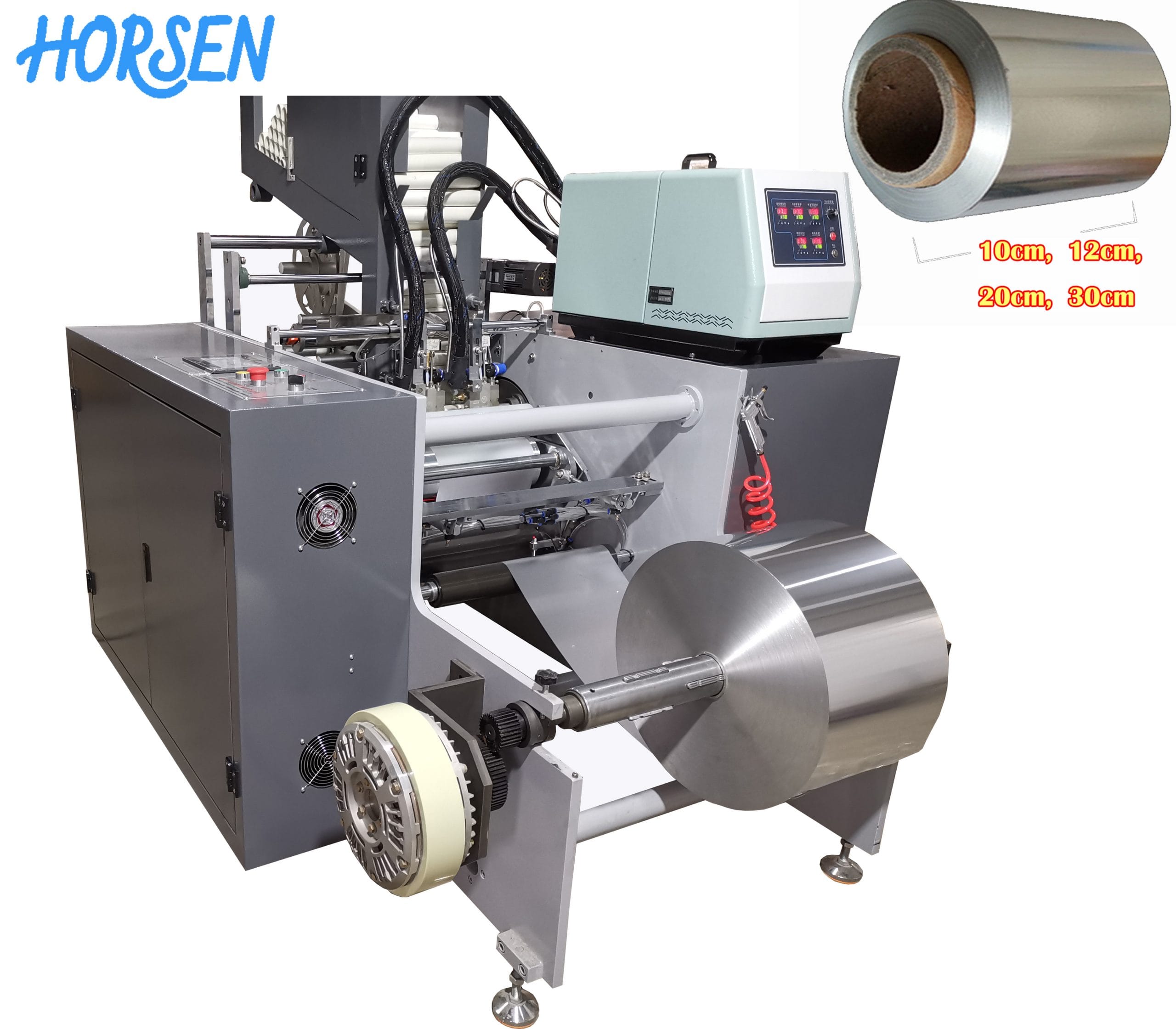

Beauty Salon Hairdressing Foil Rewinder

is use for rewinding the Jumbo roll of aluminium foil / baking paper / cling bag into small roll. It adopts surface and center rewinding method, it can rewind the roll from 1 meter for house foil roll, kitchen foil roll, catering foil roll and hairdressing foil etc. It could feeding paper cores, rewinding by meters, sealing(sealing by hot melt glue system) the finishes rolls and transferring automatically with 6 shafts revolver type system automatic changes without stop. It is controlled by a Siemens PLC microcomputer, with high-precision and accurate encoder, reliable electronic and pneumatic combine, with hotmelt glue tank and auto labelling system, the speed could rewind from 25 rolls to 40 rolls per minute.

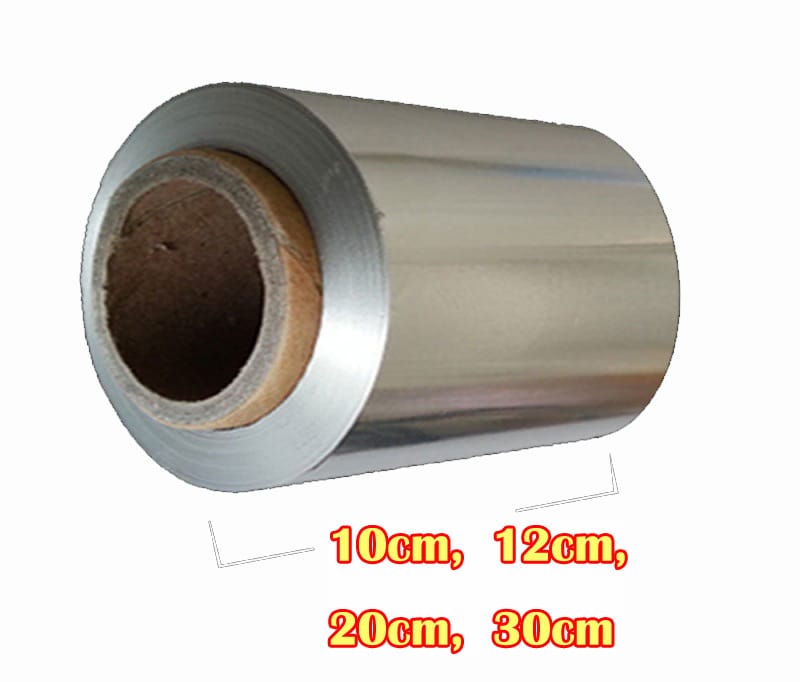

For the aluminum foil roll width could customized, welcomed your orders.

Rewinder Specification

Item number	HSS-450 6 shafts auto change
Rewinding Material	Aluminum foil, baking paper, silicon paper
Driven Type	Electric
Width of material	100-350mm(customized)
Width of products	100-350MM(customized)
Diameter of un-winder roll(Max)	Ф700mm
Diameter of re-winder roll(Max)	Ф90mm / max. length 300m
Minimum length of rewind	1meter
Core size of un-winder	3’’ or 6”
Core size of re-winder	30mm 35mm or 38mm （Customized )
Max Mechanical Speed	350m/min
Main motor	4kw
Air pressure	0.5Mpa
Change motor and gear reducer	750W
Rewind motor	1.5kw
Hot-melt Glue power	3KW
Sticker motor	Servo motor 750W
Inverter	Delta Taiwan
PLC	Siemens
Touch screen	WEINVIEW
Hot-melt glue machine	China famous brand（if need Swiss Robatech imported available)
Unwind and rewind tension	Automatic tension
Auto count meter	By encoder
Material finish function	Automatic machine stop
Weight	1600kg
Installing dimension (LXWXH)	350018002100mm
Packing Type	wooden case
Packing Size	230175190cm
